Usb Type C Charging Concept And Application

What is USB Type C?

USB-C (also known as USB Type-C) is a type of USB connector. It is a small, reversible connector that can be used for both data transfer and charging. One of the most important advantages of USB-C is its versatility. It can support various protocols, including USB 3.1, DisplayPort, Thunderbolt 3, and Power Delivery, among others. This means it can be used to connect various devices including smartphones, tablets, laptop computers, external hard drives, and monitors.

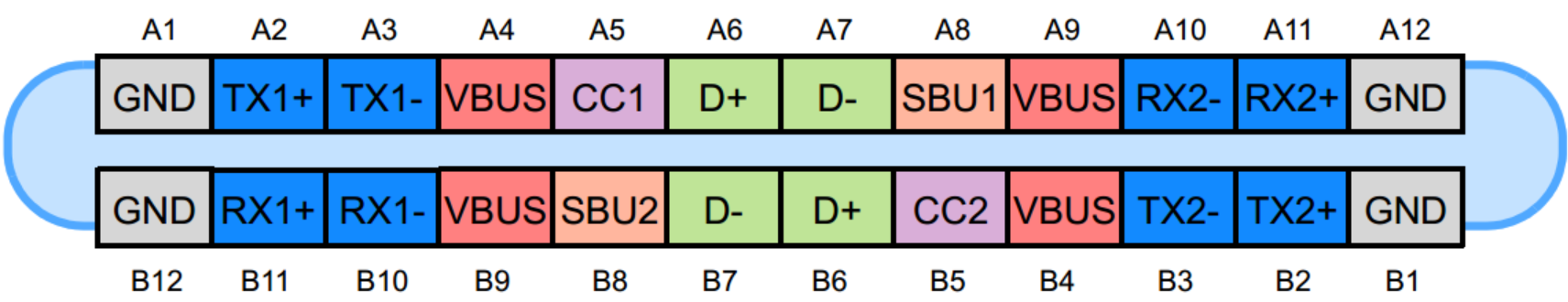

USB type c connector

Fig 1. USB TYPE C PINOUT

USB-C also offers faster data transmission speeds than legacy USB connectors. USB 3.1 Gen 2 can support data transfer rates of up to 10 Gbps, which is twice as fast as USB 3.0. Additionally, USB-C supports higher power delivery, which means that it can charge devices more quickly and can even be used to power larger devices like laptops.

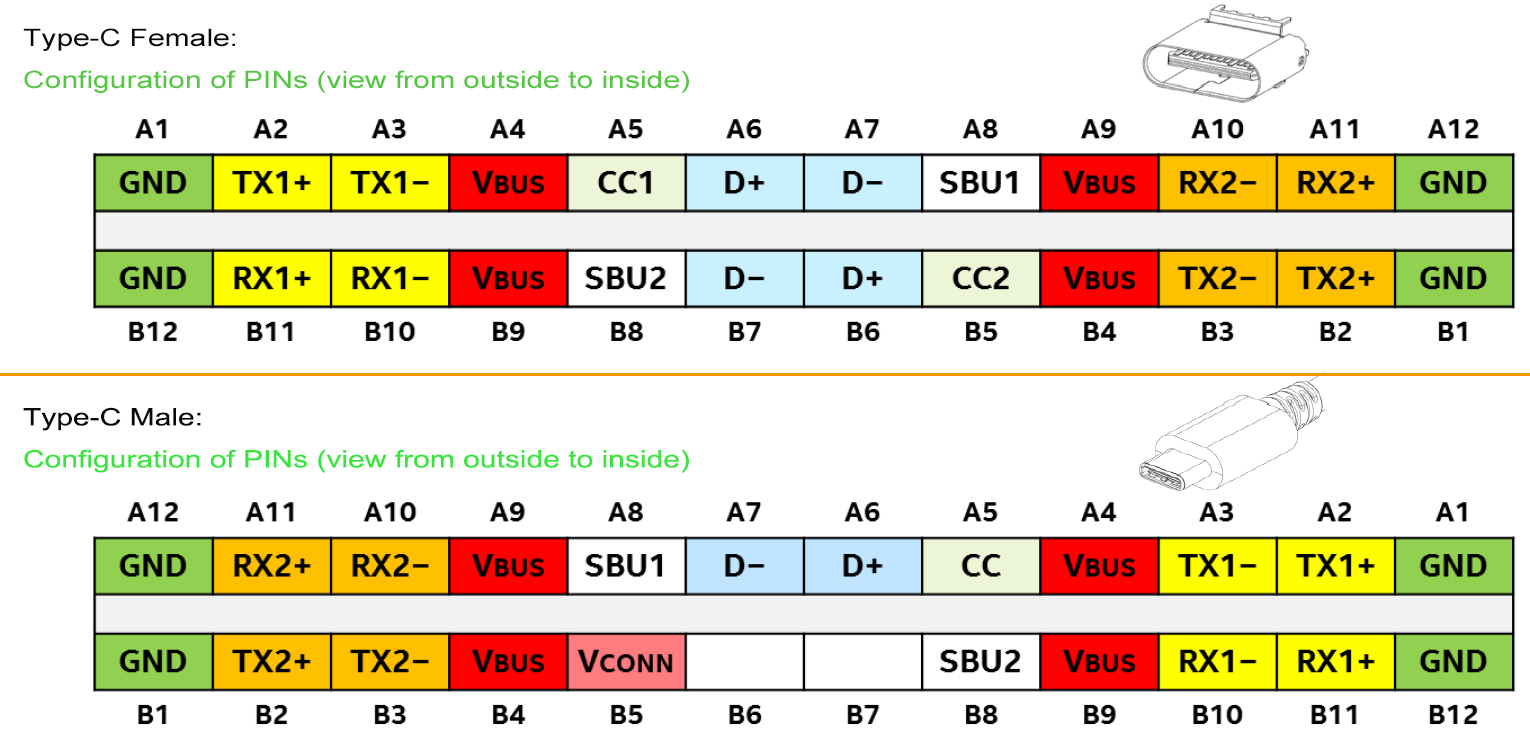

USB TYPE C DATA LINES

Fig 2. USB TYPE C CONNECTOR DATA LINES

Another advantage of USB-C is its reversible design. Unlike older USB connectors, USB-C can be plugged in either way, making it easier to use and less prone to damage. Overall, USB-C is a versatile and efficient connector that is becoming increasingly popular in modern devices.

How USB type c charger work?

A USB-C charger functions by supplying power to a USB-C device via the USB-C port. The charger typically has a power source, such as a wall outlet or a USB port on a computer, which converts AC power to DC power and delivers it to the USB-C port.

When a USB-C device is connected to the charger's USB-C port, the charger communicates with the device to negotiate the proper amount of power to be provided. This negotiation is done using the Power Delivery (PD) protocol, which is a feature of the USB-C standard.

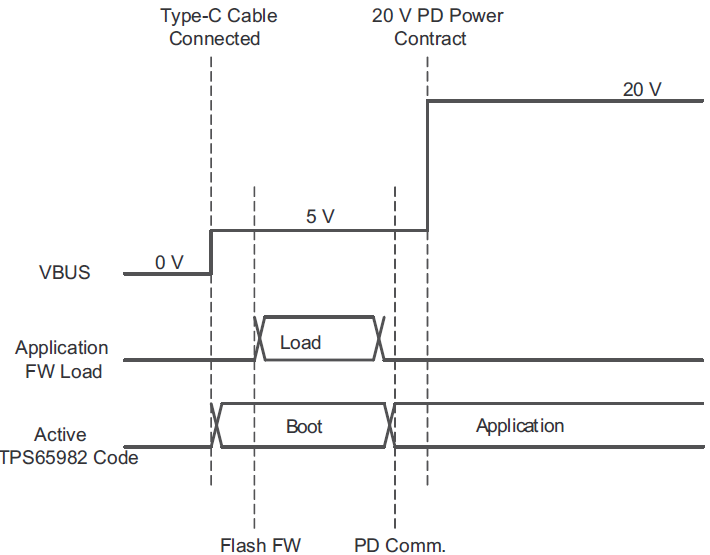

USB type c charging vbus concept

Fig 3. USB TYPE C VBUS CONCEPT

The PD protocol allows the device and charger to communicate how much power is required and how much power the charger can provide. This negotiation allows the charger to provide the appropriate amount of power to the device, making sure it loads quickly and efficiently without overheating or overloading.

Along with power, USB-C chargers can also support data transfer and other protocols, such as DisplayPort and HDMI. This makes them versatile and helpful for a wide range of devices, including smartphones, tablets, laptops, and even some large devices like monitors and televisions.

What is the use of USB type C?

USB-C (also known as USB Type-C) is a versatile and powerful connector that can be used for a wide range of purposes. Here are some common uses of USB-C:

Charging: USB-C can be used for fast-charging devices such as smartphones, tablets, laptops, and other electronic devices. It can also support higher power delivery, making it possible to charge larger devices like laptops.

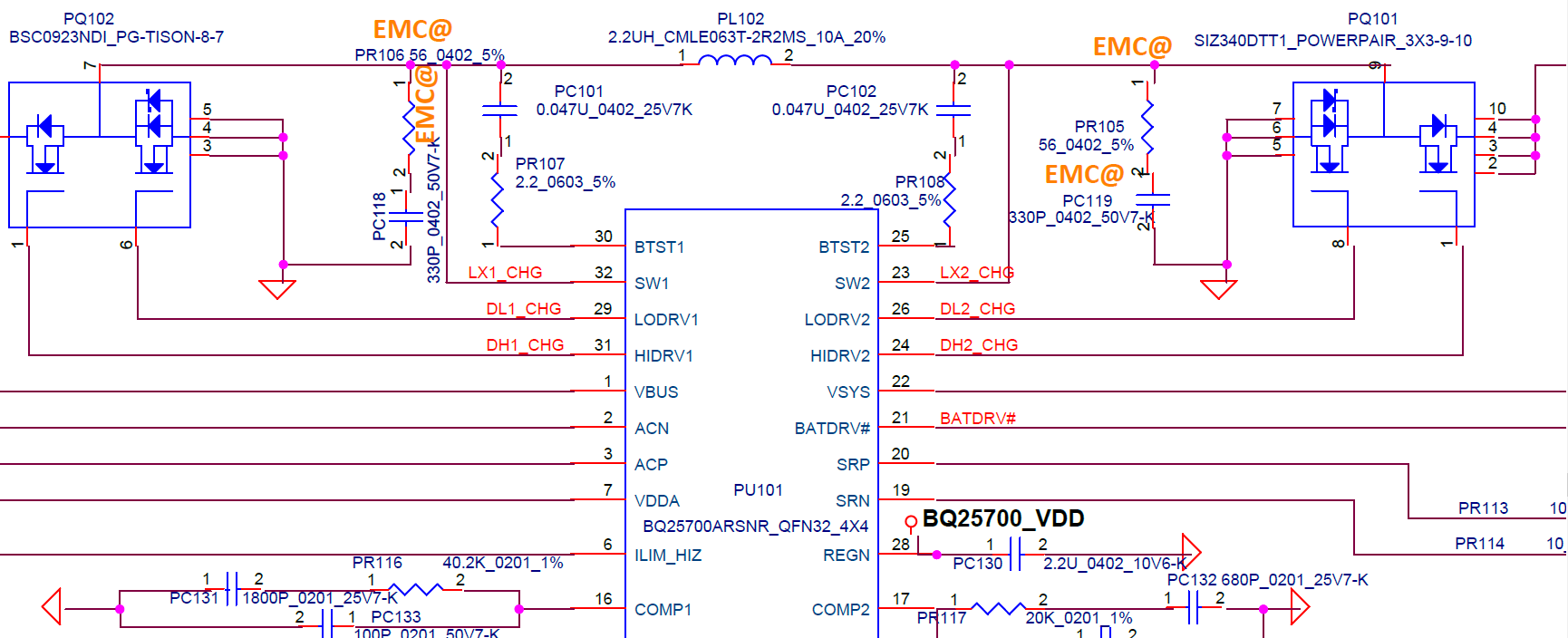

USB TYPE C CHARGING CONCEPT

Fig 4. USB TYPE C CHARGING CONCEPT

Data transfer: USB-C supports high-speed data transfer rates up to 10 Gbps, which makes it ideal for transferring bulky files such as videos, photos, and music between devices.

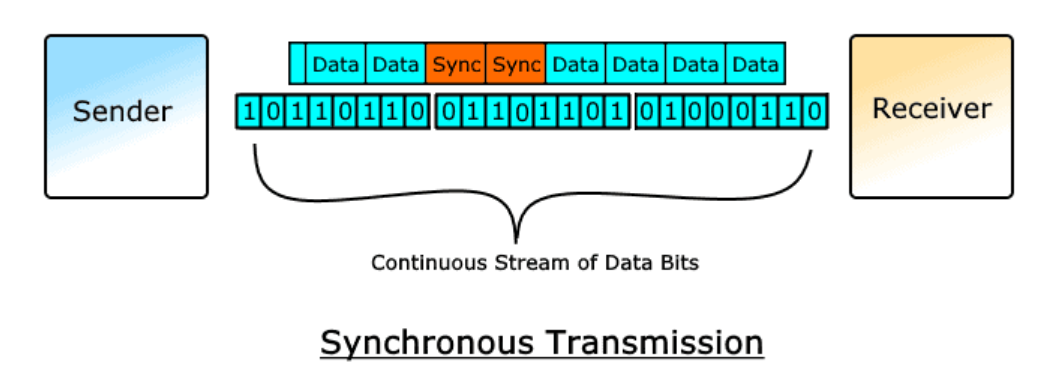

USB TYPE C DATA TRANSFER

Fig 5. USB TYPE C DATA TRANSMISSION


Video output: USB-C can support video output through protocols like DisplayPort and HDMI, making it possible to connect a USB-C device to an external display or projector.

Audio output: USB-C can support audio output via a 3.5mm jack or via a USB-C headset, allowing music or other audio content to be played via a USB-C device.

Device connectivity: USB-C can be used to connect a wide array of devices such as keyboards, mice, external hard drives, and other devices to a USB-C device.

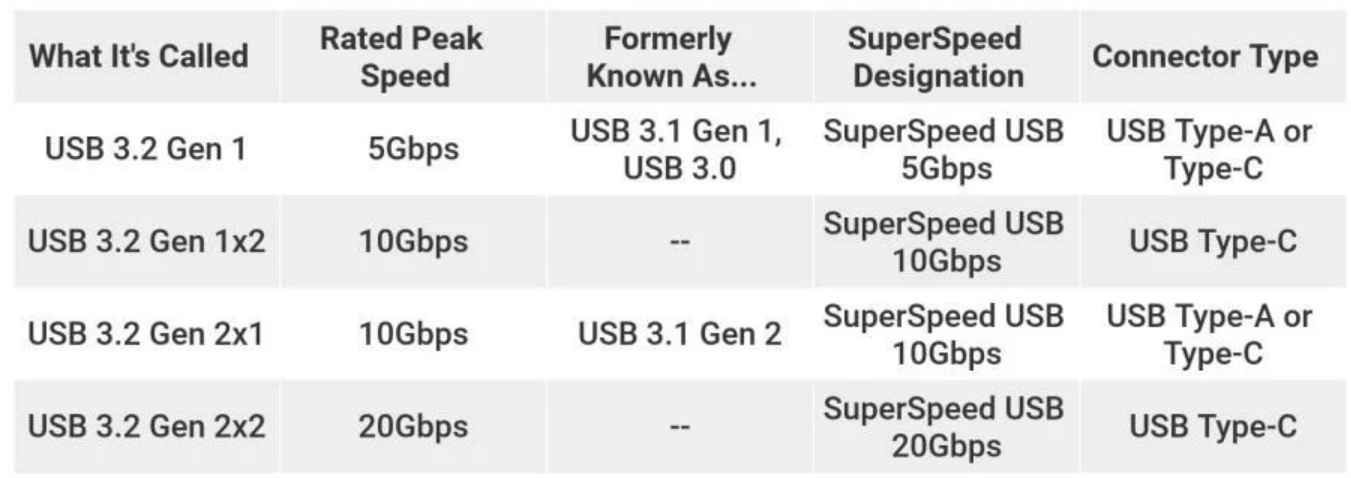

USB TYPE C DATA TRANSFER SPEED

Fig 6. USB TYPE C DATA TRANSFER SPEED

Overall, the USB-C is a versatile and powerful connector that can be used for many different purposes, making it an essential component of many modern devices.
