Why case studies improve diagnosis
A repair case becomes useful when it records the symptom, initial condition, measurements and final conclusion. This creates a repeatable diagnostic path instead of a list of parts that were replaced.
Two boards with the same visible symptom may have different causes. The purpose of a case study is therefore to explain why each measurement was selected and what the result proved.
Case study: no power and no current draw

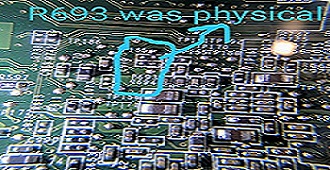

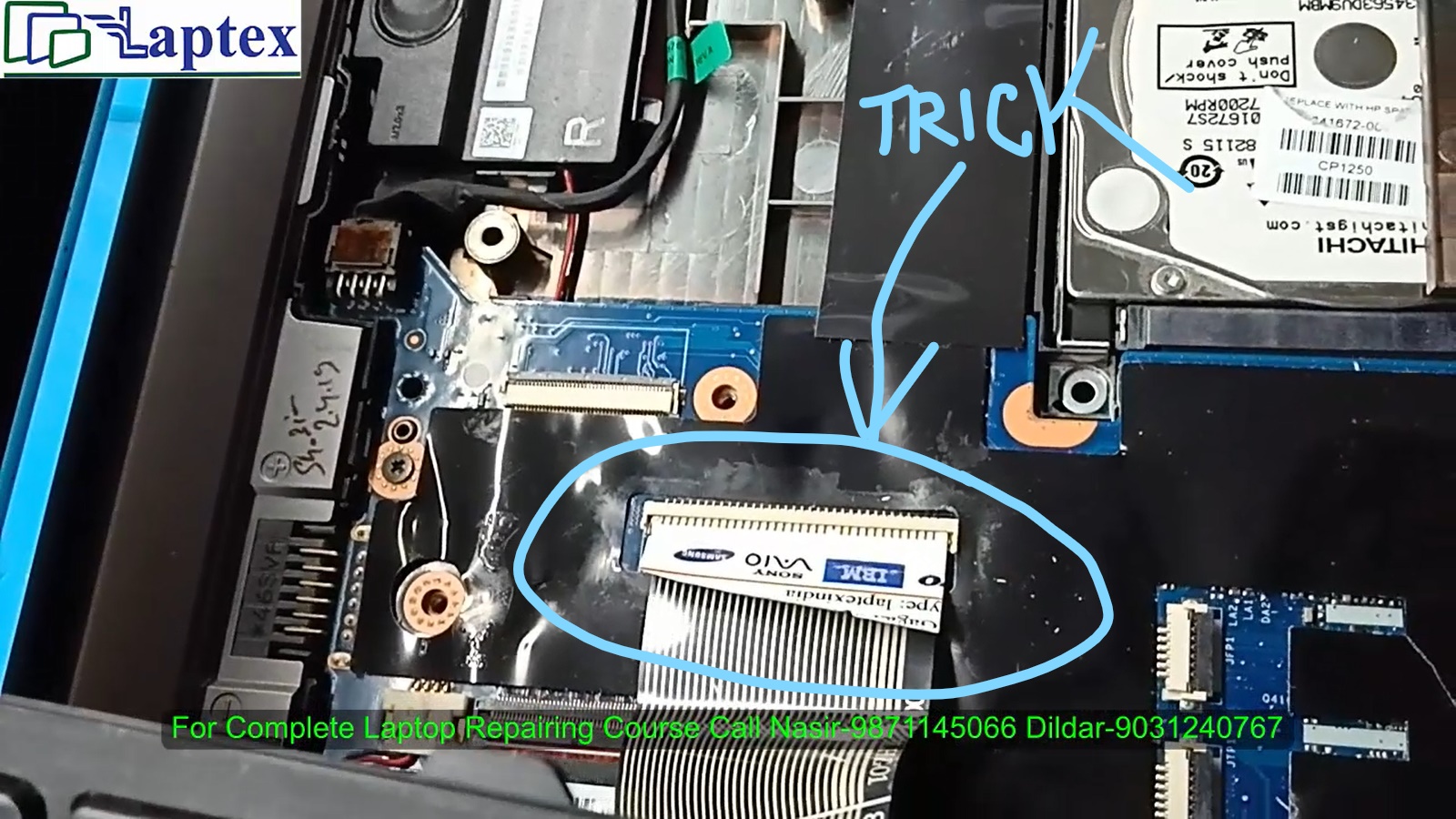

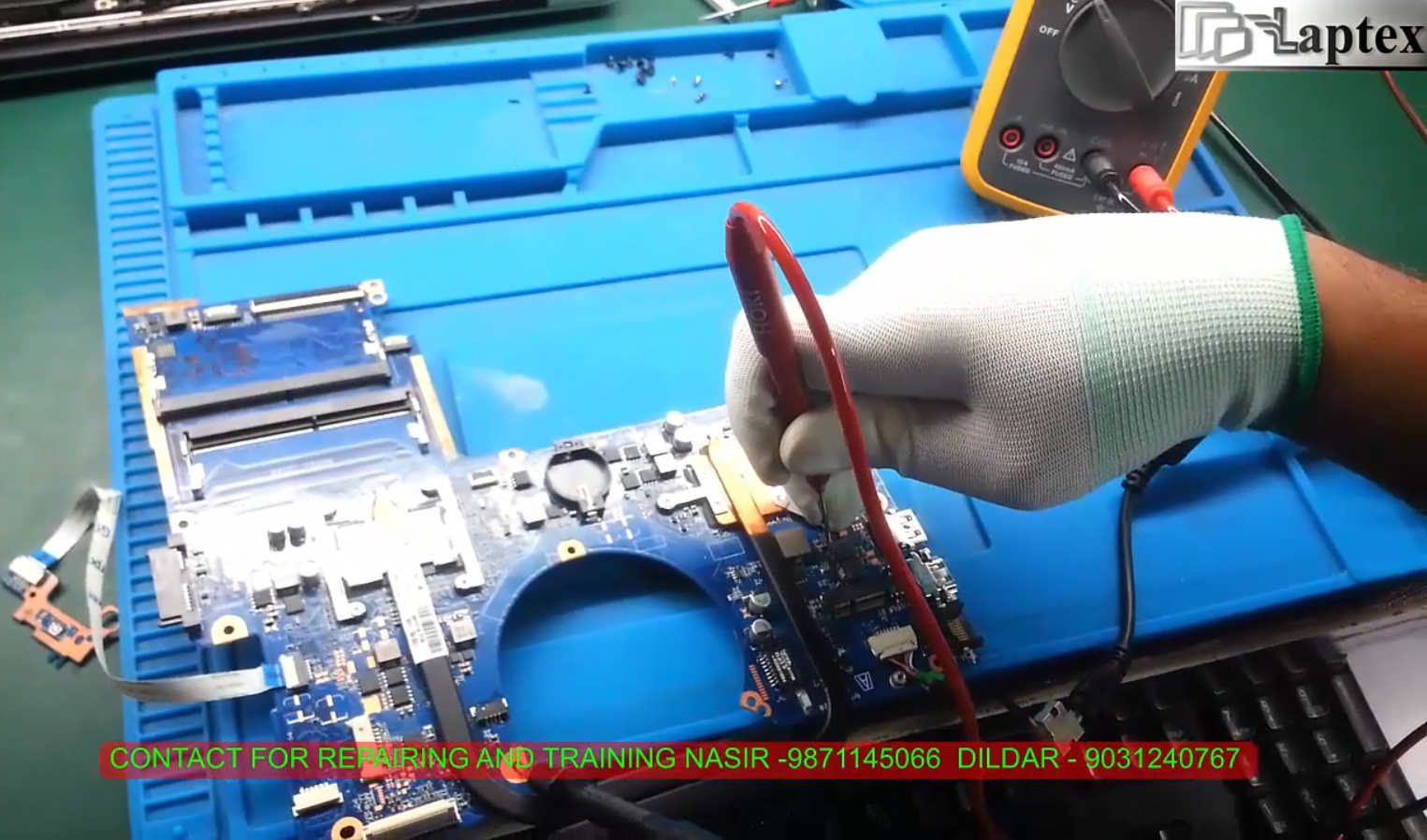

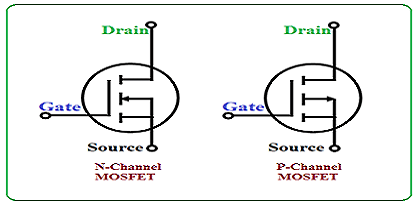

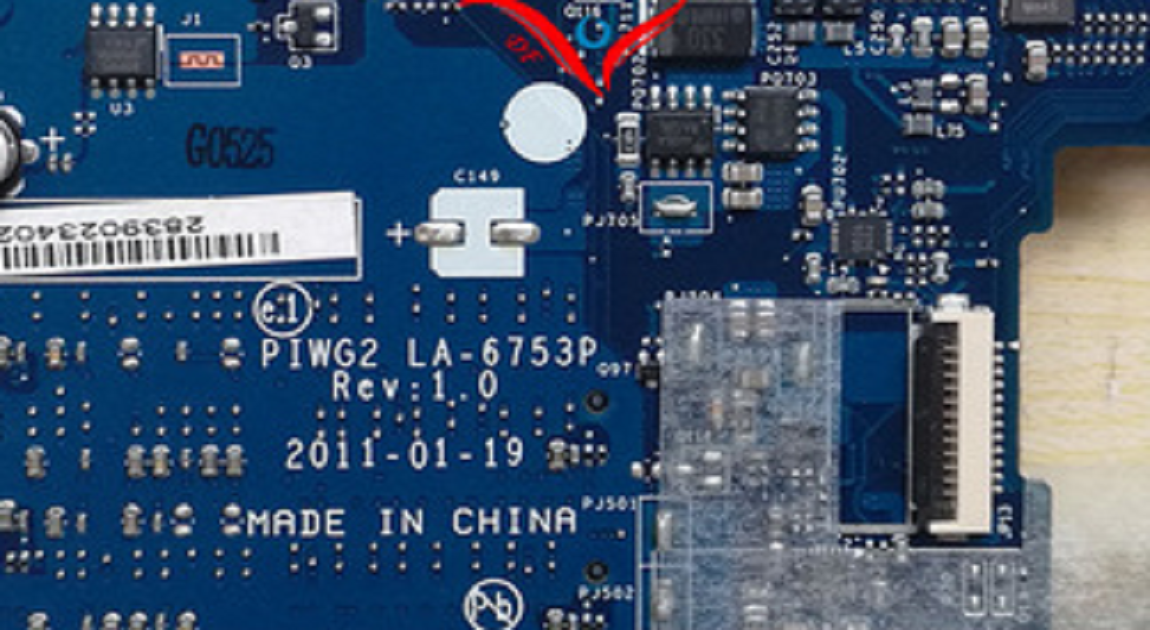

Begin by confirming the adapter voltage at the input connector and after the protection MOSFET stage. Inspect for corrosion, heat damage and shorted input capacitors before applying power.

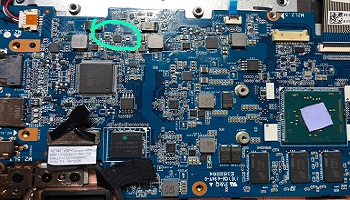

If adapter voltage enters the board but the bench supply shows almost no current, verify the always-on 3.3 V and 5 V rails, embedded-controller supply, RTC section and power-button signal. Follow missing enables backward through the schematic.
Recording a professional repair conclusion

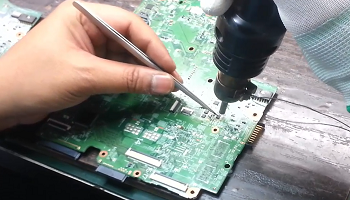

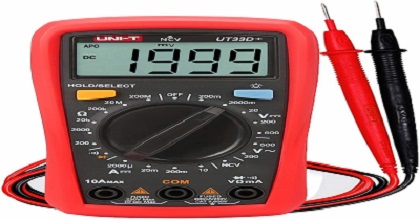

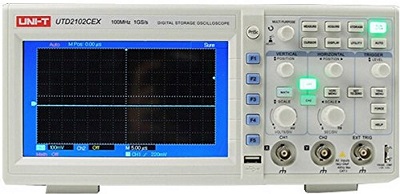

Write down expected and measured voltage, resistance or waveform for every important test point. Note the instrument range and the board state during measurement.
A strong conclusion identifies the failed section and the evidence supporting it. This record helps with repeat faults, quality control and clear communication with the customer.

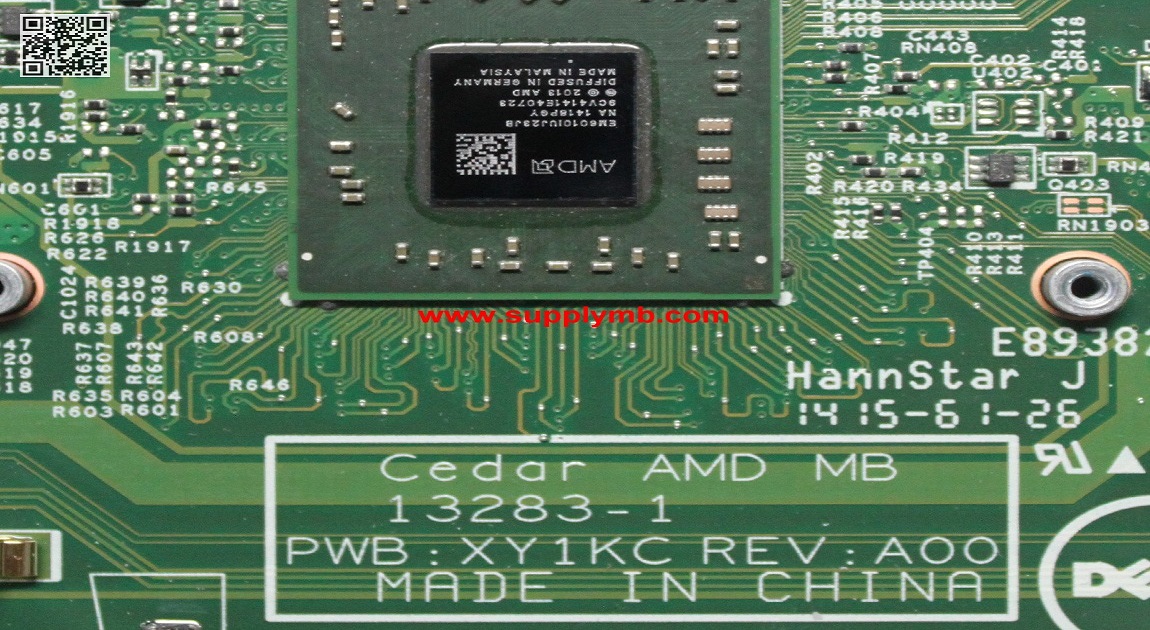

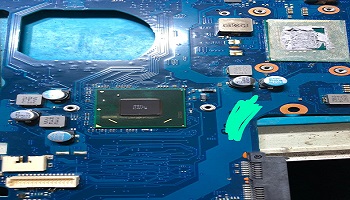

Case study: standby rails present but board does not start
When the always rails are stable, check whether the power-button transition reaches the embedded controller. Then follow sleep-state signals, power-good signals, reset lines and clock availability in their expected order.
Do not force an enable signal simply to make a later rail appear. A missing enable is evidence that an earlier condition has not been accepted.
Continue learning
This article provides an educational overview. Measurements and board work should be performed with appropriate safety, schematic context and supervised practice where needed.
